CO Check Pro Carbon Monoxide Breath Monitor
Product Code: N101245
- Designed for healthcare professionals to carry out simple breath tests whilst providing comprehensive results.
- Coloured light indicators to signify smoking level
- Results instantly displayed
- Single press button to toggle between ppm and %COHb
- Breath hold countdown timer to guide patients
- Measurement of environmental CO levels
Not available for members of the public to purchase for private use - please contact us for more information
The CO Check Pro carbon monoxide breath monitor has been designed for the healthcare professional to carry out simple breath tests whilst providing comprehensive results.
From a single breath, the results of the CO Check Pro are displayed instantly in parts per million (PPM) and % carboxyhaemoglobin (%COHb). Clear visual guidance is also provided with coloured red, yellow and green indicators dependent on the concentration of exhaled carbon monoxide, indicating if the person is a non-smoker, light smoker, or heavy smoker.
The CO Check Pro breath monitor is also capable of detecting environmental CO levels. When the Environmental Capture is enabled, background CO levels are taken into account when carrying out a breath test. This ensures that any possible environmental exposure can be clearly identified. Environmental levels are displayed in PPM.

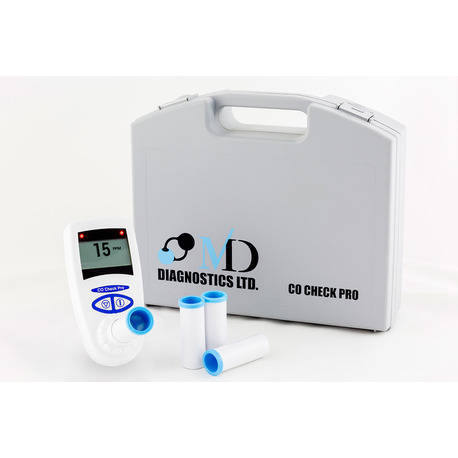

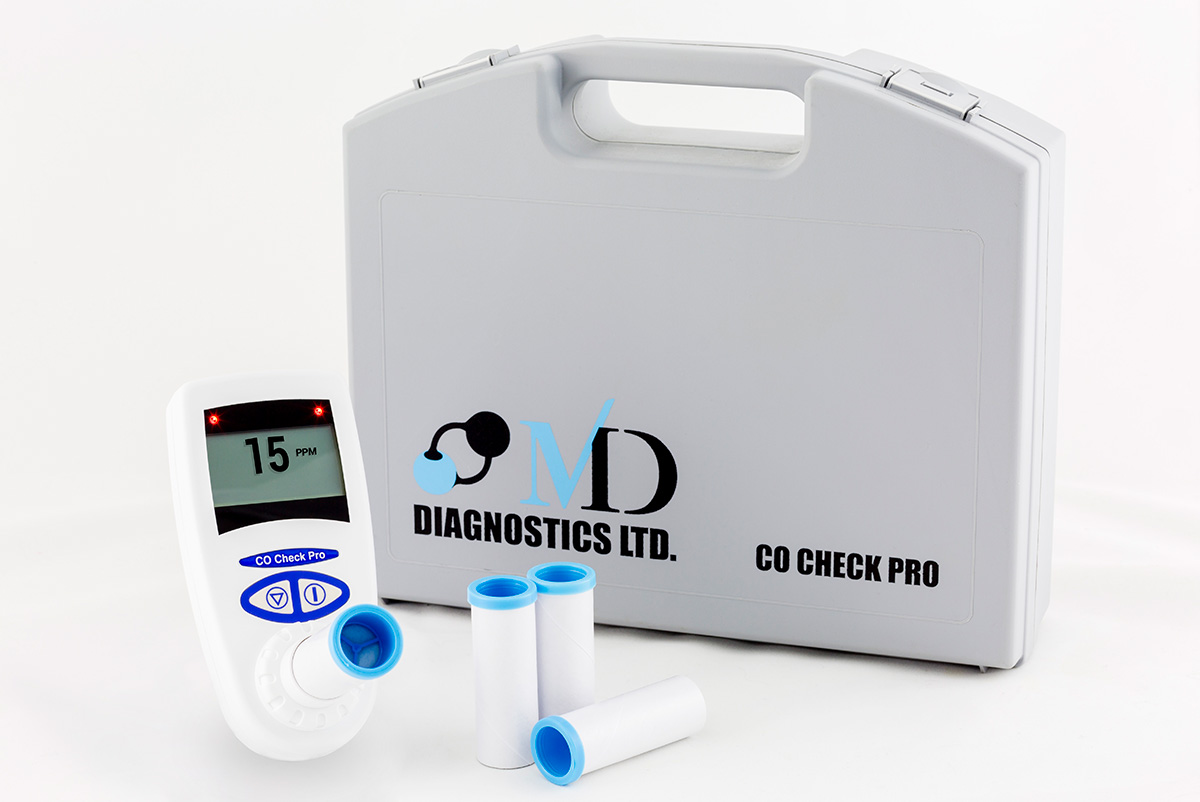

What's included?
- CO Check Pro Carbon Monoxide Breath Monitor
- Carry case
- 6 SafeBreath mouthpieces
- 9v PP3 battery
- Calibration stem connector
- Operating manual
FAQs
Is the monitor CE Marked?
Yes
Is it IEC 60601 Electrical Safety Standard Compliant?
Yes
Is the useful life of the device 2 year or 5 years?
The device has a 5 year warranty except for the electrochemical fuel cell which has an expected life of two years and is therefore excluded from the warranty. The electrochemical fuel cell works in a similar way to a battery and therefore the more you use it the shorter it’s life. The chemical is used up as it combines with the CO in the exhaled breath, which produces a current that is proportional to the CO concentration. In normal use the cell will last at least 2 years but if it is used regularly with high levels of CO, or exposed to abnormally high levels of CO, it may need to be replaced sooner.
Technical Specification
Gas Detected – Carbon Monoxide
Concentration Range – 0-99 PPM
Detection Sensor Used – Electrochemical fuel cell
Sensitivity – 0.1 PPM (0-10 PPM range); 1 PPM (10-99PPM range)
Accuracy (repeatability) – 2ppm or +/-5% whichever is greater
Operating Temperature – 5-35o Celsius
Operating Pressure – Atmospheric 10%
Operating Humidity – 30% to 90% RH
Operating Altitude – Sea level to 6000 ft
Storage Temperature -20 to + 70O C
Storage Humidity – 10% to 90% RH
Hydrogen cross-sensitivity – <12% at 20˚ C
Sensor Life – 2 – 5 years, 2 years’ warranty
Sensor Drift – <2% per month
Display – 128 X 64-pixel Graphic LCD
Power Supply – Single 9V PP3 battery
Weight (approximate) – 160g including battery
Dimensions – 135mm x 65mm x 30mm
*Indicator levels – Green 0 – 6 PPM, Yellow 7 – 10 PPM, Red 11 – 20 PPM, Flashing red 20+ PPM
CO Check Pro – Catalogue Number CO20
