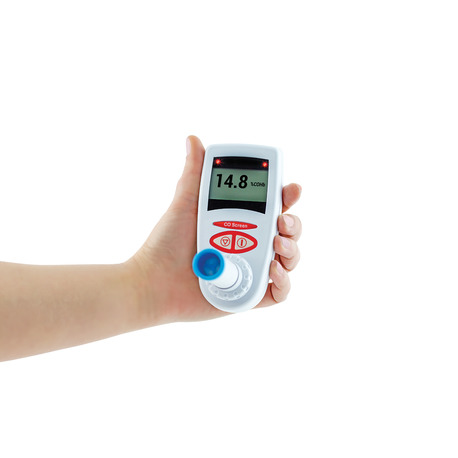

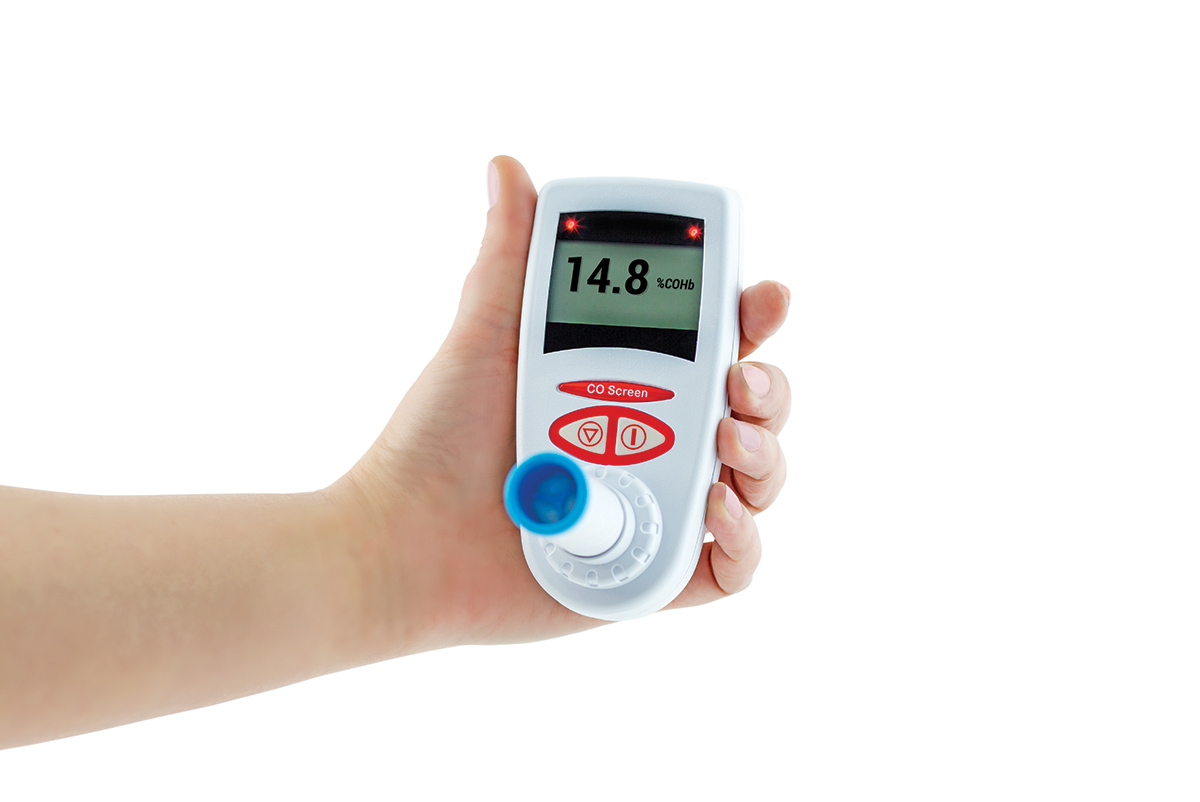

CO Screen Carbon Monoxide Breath Monitor
Product Code: N101249
- Designed for A&E and the emergency services to carry out a simple breath test
- Establishes carbon monoxide (CO) levels in patients who have potentially been exposed to dangerously high levels of CO
- Results instantly displayed
- Results displayed in %COHb or ppm for easy interpretation
- No warm up time required
- Can be used on multiple patients with minimal effort (mouthpiece must be disposed of between patients)
- Configurable breath hold time dependent on operator preferences ranging from 0 to 20 seconds
Not available for members of the public to purchase for private use - please contact us for more information
CO Screen carbon monoxide breath monitor has been designed to enable emergency service responders to carry out a simple breath test to establish carbon monoxide levels in a subject’s blood. This product specifically designed for the testing of patients who have potentially been exposed to dangerously high levels of carbon monoxide.
When dealing with CO, time is critical. In the blood stream Carbon Monoxide has an affinity with haemoglobin some 200 times greater than Oxygen. When this happens, the blood is no longer able to carry oxygen, and this lack of oxygen causes the body’s cells and tissue to die.
The CO Screen breath monitor will give instant breath results in %COHb and PPM. Both measurements are backed up with colour traffic lights for immediate visual display.

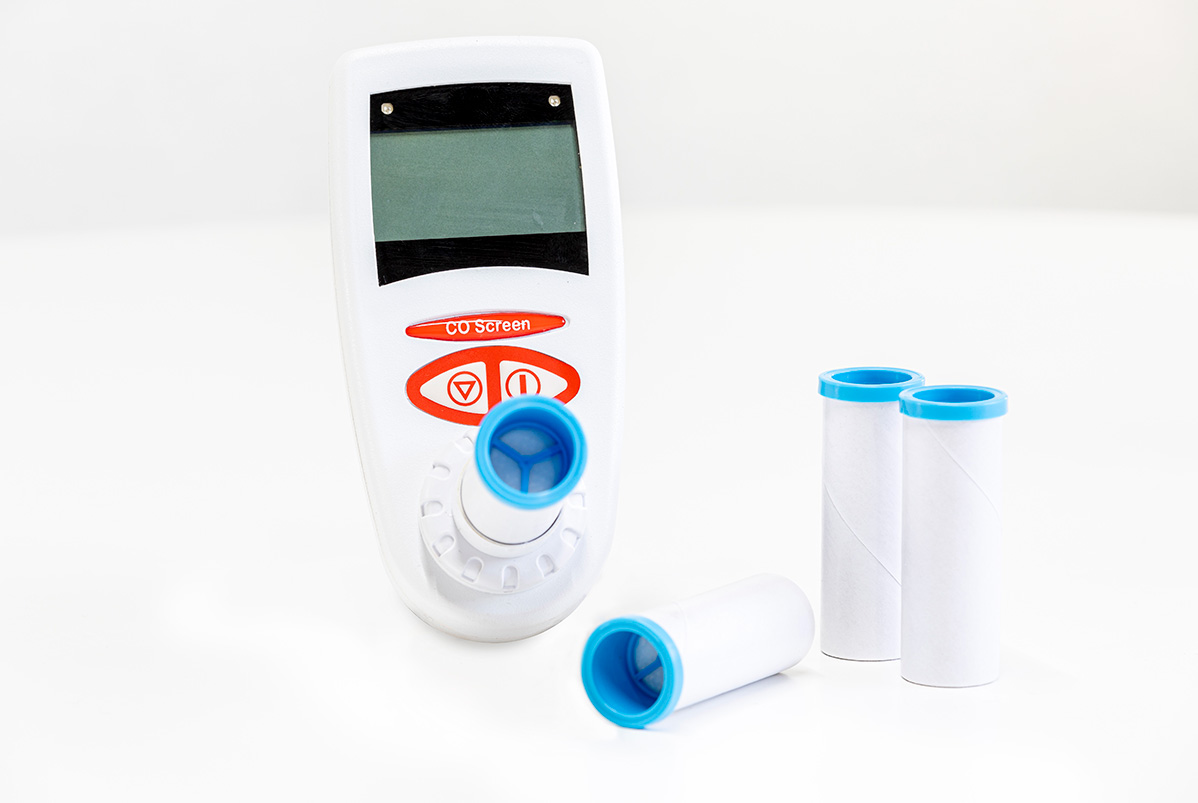

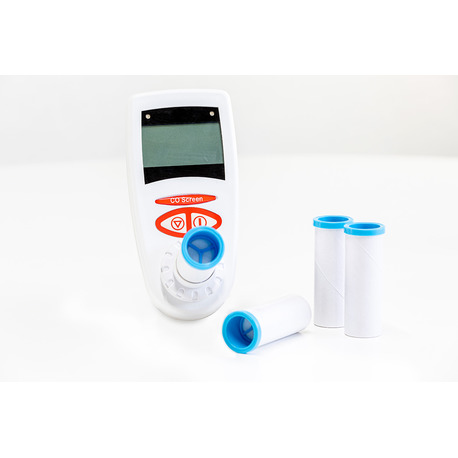

What's included?
- CO Screen Carbon Monoxide Breath Monitor
- Carry case
- 6 SafeBreath mouthpieces
- 9v PP3 battery
- Calibration stem connector
- Operating manual
FAQs
Is the monitor CE Marked?
Yes
Is it IEC 60601 Electrical Safety Standard Compliant?
Yes
Is the useful life of the device 2 year or 5 years?
The device has a 5 year warranty except for the electrochemical fuel cell which has an expected life of two years and is therefore excluded from the warranty. The electrochemical fuel cell works in a similar way to a battery and therefore the more you use it the shorter it’s life. The chemical is used up as it combines with the CO in the exhaled breath, which produces a current that is proportional to the CO concentration. In normal use the cell will last at least 2 years but if it is used regularly with high levels of CO, or exposed to abnormally high levels of CO, it may need to be replaced sooner.
Technical Specification
Gas Detected – Carbon Monoxide
Concentration Range – 0-42.5 %COHb (375 PPM)
Detection Sensor Used – Electrochemical fuel cell
Sensitivity – 1 % COHb
Accuracy (repeatability) – ±3%
Operating Temperature – 5-35 degrees Celsius
Operating Pressure – Atmospheric 10%
Operating Humidity – 30% to 90% RH
Operating Altitude – Sea level to 6000 ft
Storage Temperature – minus 20 to + 70˚ C
Storage Humidity – 10% to 90% RH
Hydrogen cross-sensitivity – <15% at 20˚ C
Sensor Life – 2 – 5 years, 2 years warranty
Sensor Drift – <2% per month
Display – 128 X 64 pixel Graphic LCD
Power Supply – Single 9V PP3 battery
Weight (approximate) – 160g including battery
Dimensions – 135mm x 65mm x 60mm
Indicator levels – Green 0 – 9.9 %COHb, Yellow 10 – 19.9 %COHb, Red 20 – 29.9 %COHb, Flashing red 30+ %COHb
