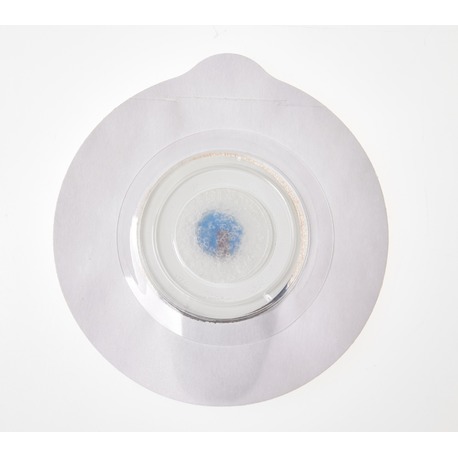

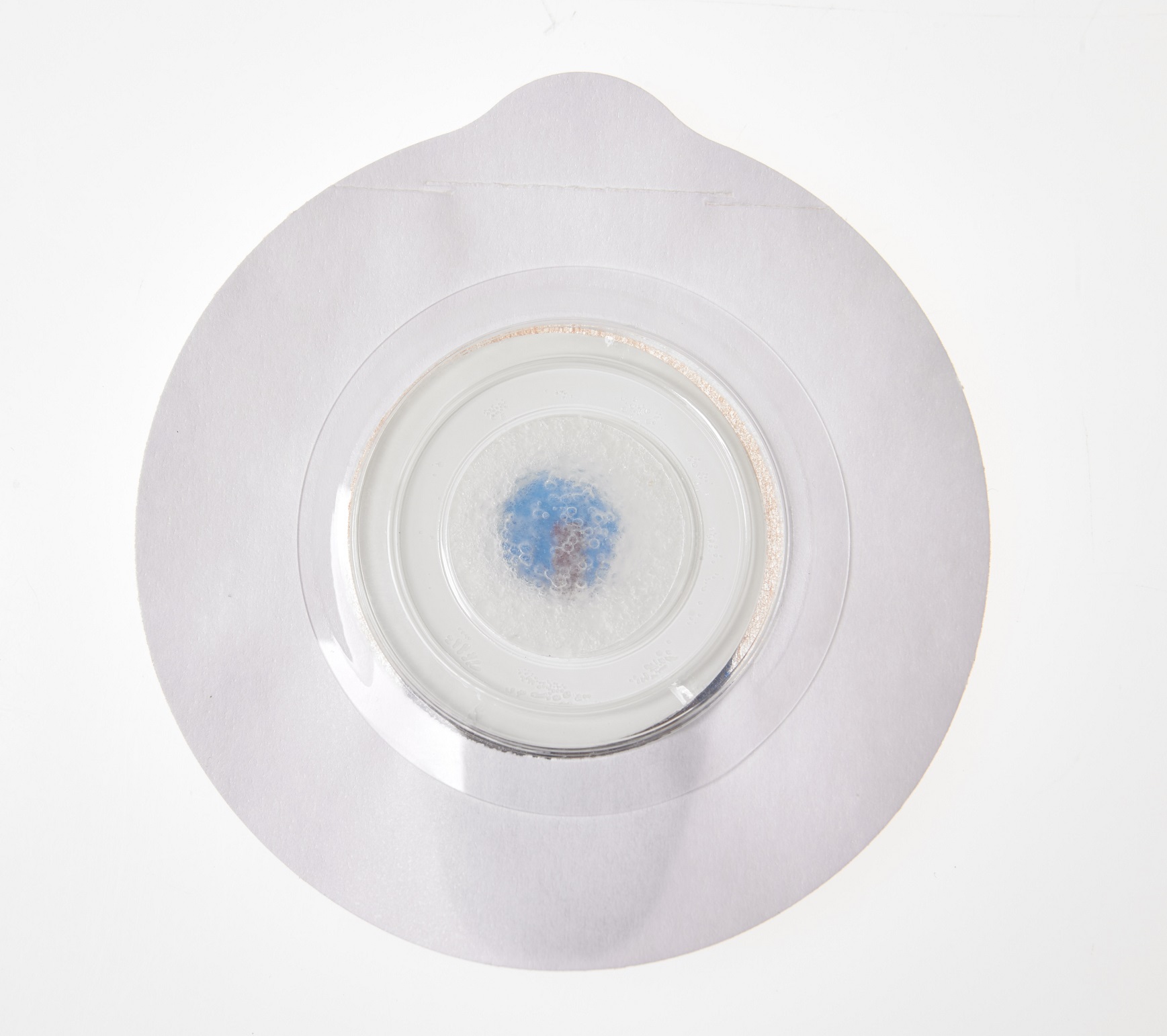

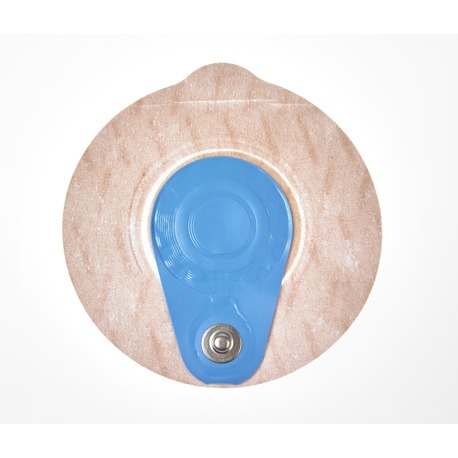

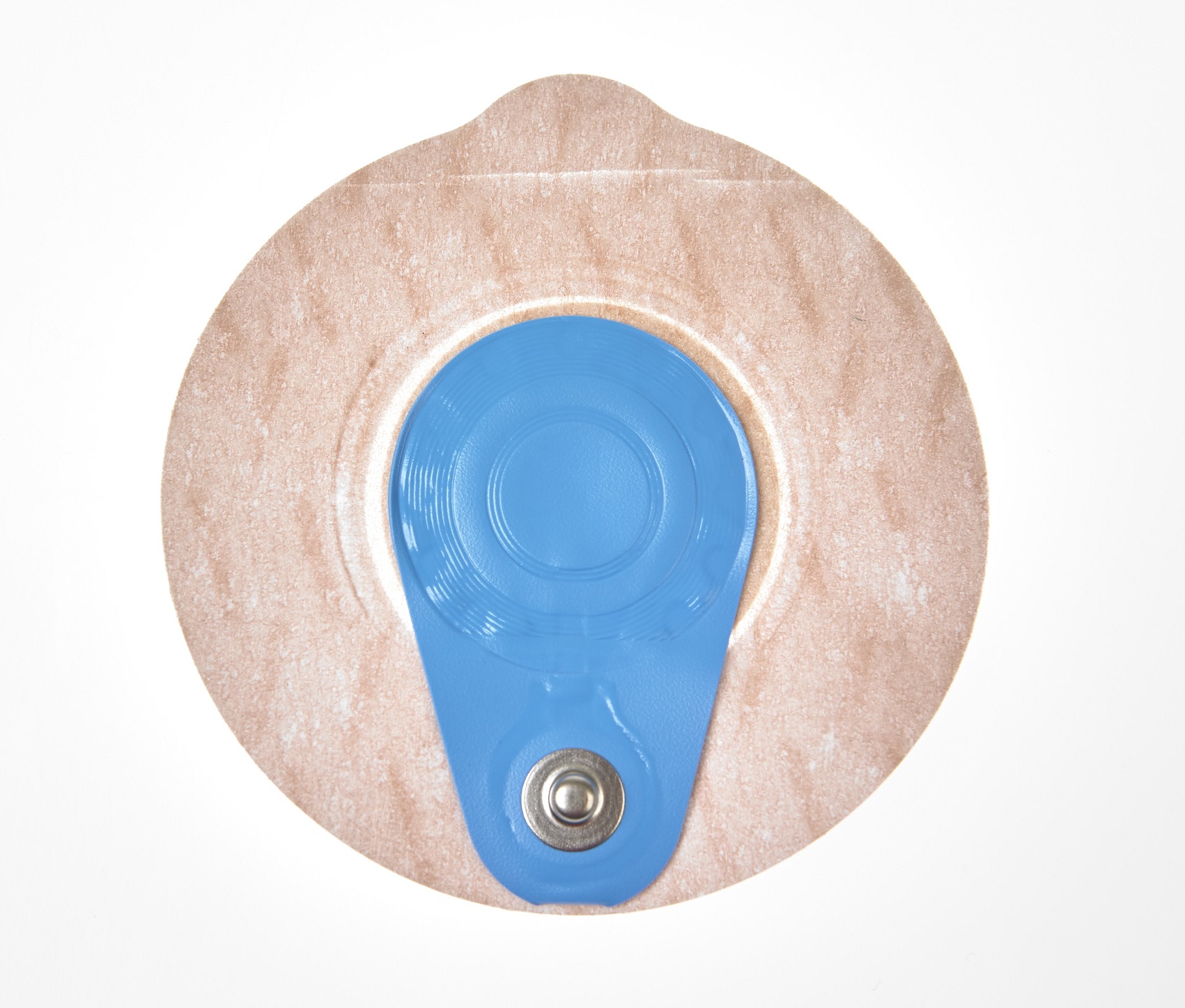

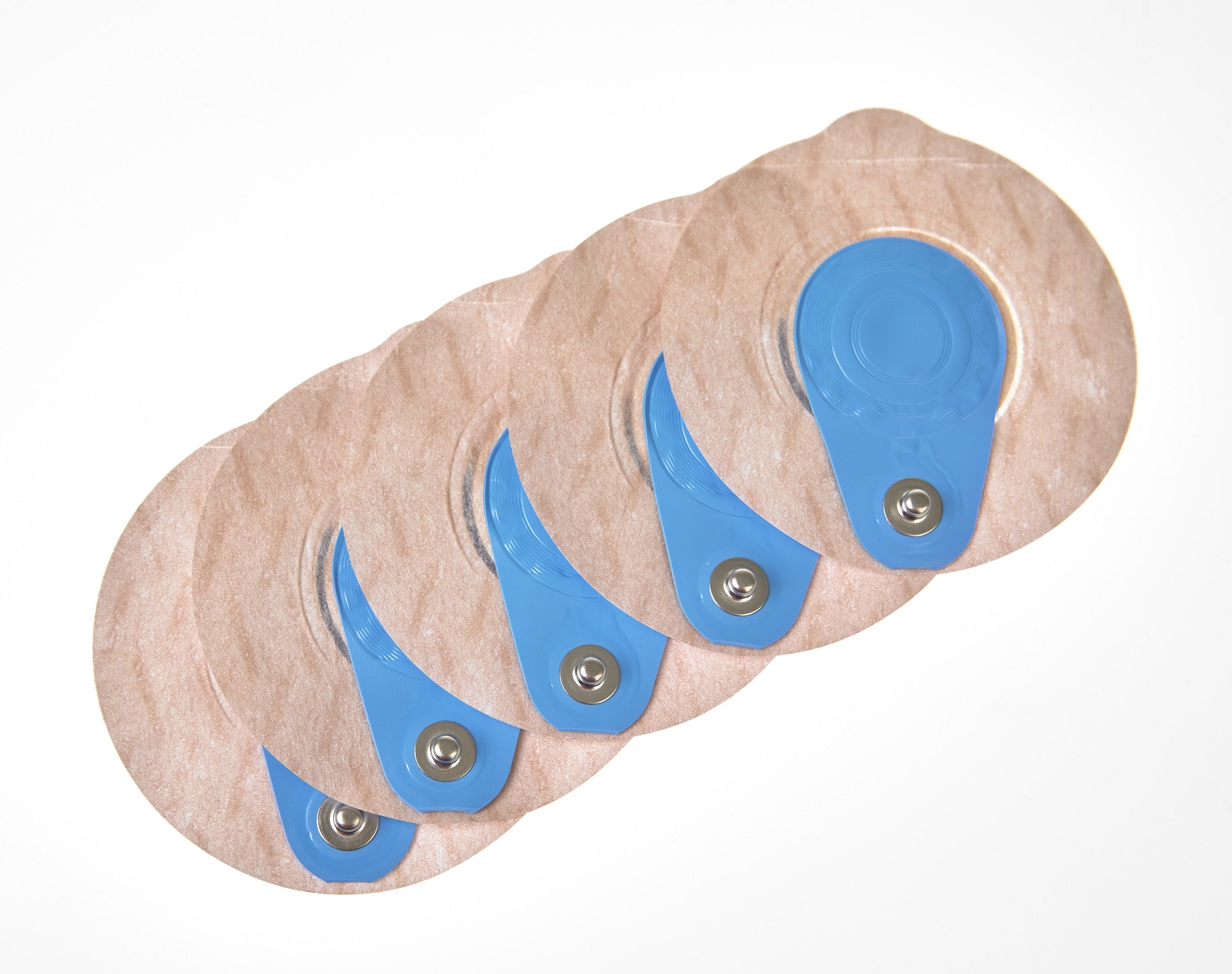

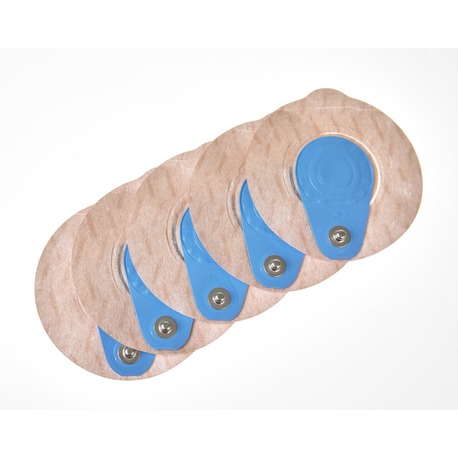

Ambu Blue Sensor VLC ECG Electrodes (Pack of 25)

Product Code: N101214
Reference: VLC-00-S/25

Now from
£12.95 exc VAT
£15.54 inc VAT

Supplied in packs of 25.


Options


FREE Delivery on orders over £100 (ex. VAT)
£12.95 exc VAT
£15.54 inc VAT

The Hypoallergenic Ambu VLC ECG electrodes feature highly conductive wet gel, a combination of instant and long-term adhesives and silver/silver sensor for excellent contact and stable signals throughout long ecg monitoring periods.

Main Features

  • High quality ECG electrode with highly conductive wet gel
  • Combination of instant and long-term adhesives
  • Breathable microporous material
  • Special soft sponge
  • Unique offset concept
  • High-quality Ag/AgCl sensor

Packs of 25

Dimensions:
Electrode size (max. L x W or diameter in mm:) 72 x 68
Skin contact size (max. L x W or diameter in mm:) 68
Adhesive area (in mm2:) 3377
Height excluding connector/wire (in mm:) 1

Electrical Data: (ANSI/AAMI):
AC impedance - typical 500 Ω
DC offset voltage - typical 0.2 mV
Defibrillation overload recovery - typical 7.4 mV
Rate of change of polarization potential
- typical 0.2 mV/s
Combined offset instability and internal noise: <15 μV
Bias current tolerance (over 8 hours:) <5 mV

Sensor:
Sensor material Silver/silver chloride (Ag/AgCl)
Gel system Wet gel
Sensor area* (in mm2:) 20.8 / 22.4
Gel area/measuring area (in mm2:) 254
*non-wire/wire
X-RAY & MRI:
X-ray-translucent no
MRI-safe no

Lifetime:
Recommended application time (max:) 48 hours
In opened pouches: 1 month
Unopened pouches:* 12 months
*from date of production
