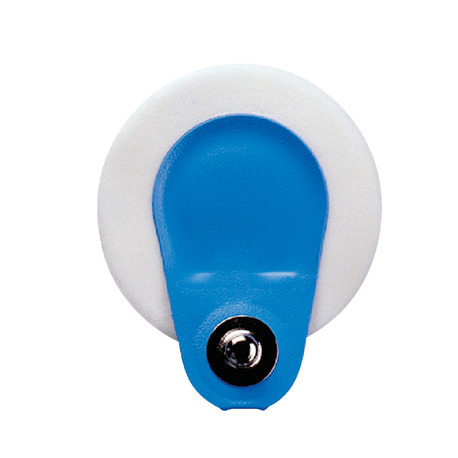

Ambu Blue Sensor P Stud ECG Electrodes (Pack of 50)
Product Code: N101221
Reference: P-00-S/50
Supplied in packs of 50.
Please select the quantity you require below and the discount will be applied automatically.
The Ambu Blue Sensor P ECG electrodes features highly conductive wet gel, superior adhesion and silver/silver sensor to ensure optimal signal quality during short to medium-term monitoring applications. The comfortable foam backing material means the electrode is gentle to the skin.
Main Features
- High quality ECG electrode with highly conductive wet gel
- Superior adhesion
- Comfortable foam backing
- Unique offset concept
- High-quality Ag/AgCl sensor
- Stud connector
Pack of 50
Dimensions:
Electrode size (max. L x W or diameter in mm:) 40.8 x 34
Skin contact size (max. L x W or diameter in mm:) 34
Adhesive area (in mm2:) 754
Height excluding connector/wire (in mm:) 1.6
Electrical Data (ANSI/AAMI):
AC impedance: - typical 400 Ω
DC offset voltage: - typical 0.2 mV
Defibrillation overload recovery: - typical 7.8 mV
Rate of change of polarization
potential: - typical 0.2 mV/s
Combined offset instability and internal noise: <15 μV
Bias current tolerance (over 8 hours:) <5 mV
Sensor:
Sensor material Silver/silver chloride
Gel system Wet gel
Sensor area (in mm2:) 13.2
Gel area/measuring area (in mm2:) 154
X-RAY & MRI:
X-ray-translucent: no
MRI-safe: no
Lifetime
Recommended application time (max.) - 12 hours
In opened pouches - 1 month
Unopened pouches* - 15 months
*from date of production
