Schiller Cardiovit CS-104 PC Based Resting ECG System
Product Code: N101216
- 1 year integration with EMIS, TPP SystmOne and Vision included - Saves time and increases patient safety
- 1 year MediServe Support included - Includes unlimited technical support and repair and servicing with loan equipment
- Hook up advisor - Highlights loose or disconnected leads with a 'traffic light' signal quality indicator
- Lead Reversal Detection - Indicates the misplacement of electrodes pre-aquisition
- Resting Rhythm feature - Allows the recording of a rhythm strip for up to 20 minutes
- 3 year Numed warranty
Our diagnostic solutions are designed to save you time and improve patient safety. This product is available with the following options:
I3 integration will automatically retrieve a patient's details from EMIS, TPP SystmOne or Vision and file a PDF report and associated coded results upon test completion to their medical record.Find out more about I3 integration See how it works
This product is available with our unique MediServe support package, which includes unlimited technical support and a full aftercare service.Find out more about Mediserve support
Installation & Training
Our dedicated team can install and train you on this product at a time that is convenient for you.Find out more about install & training

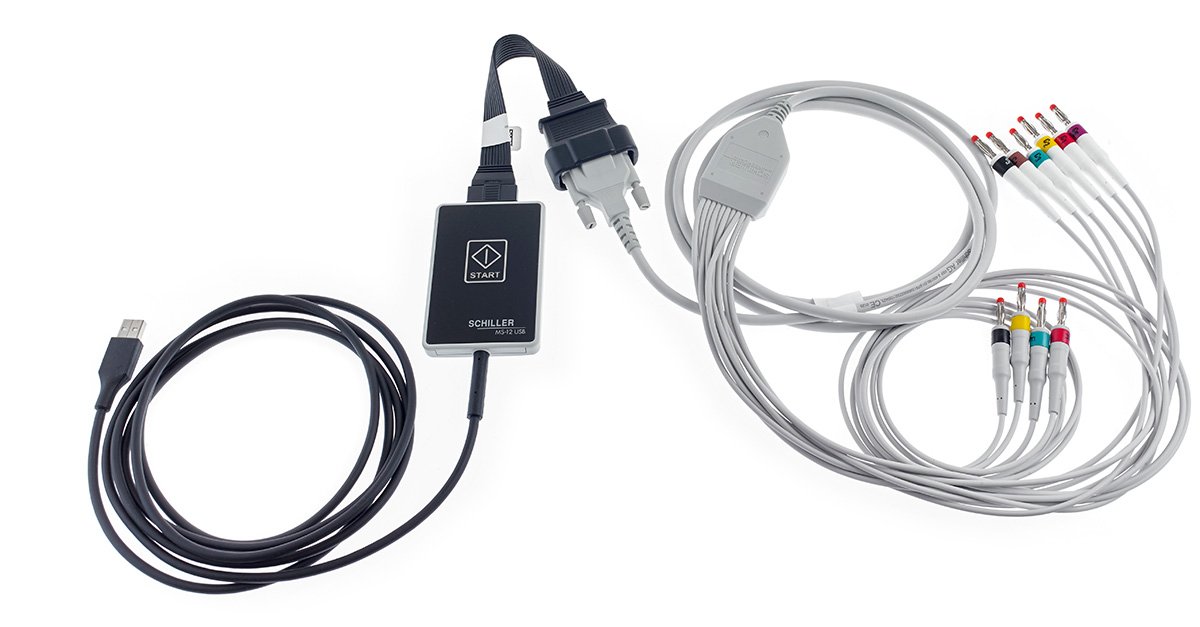

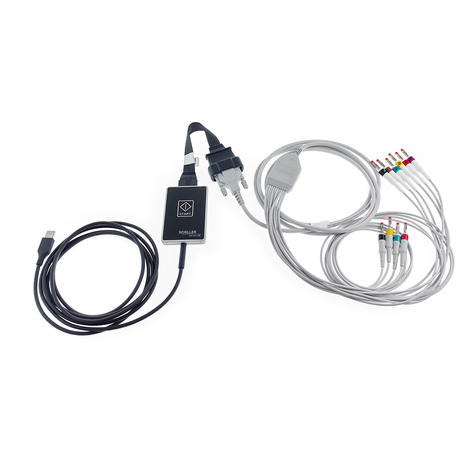

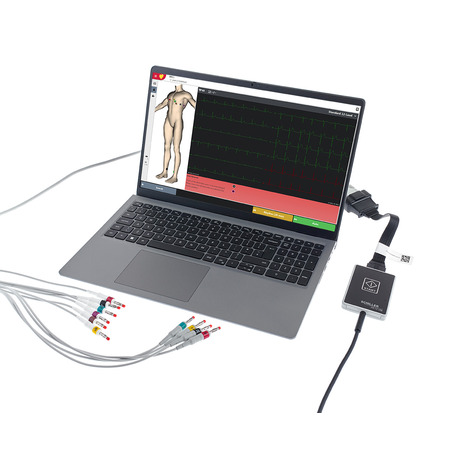

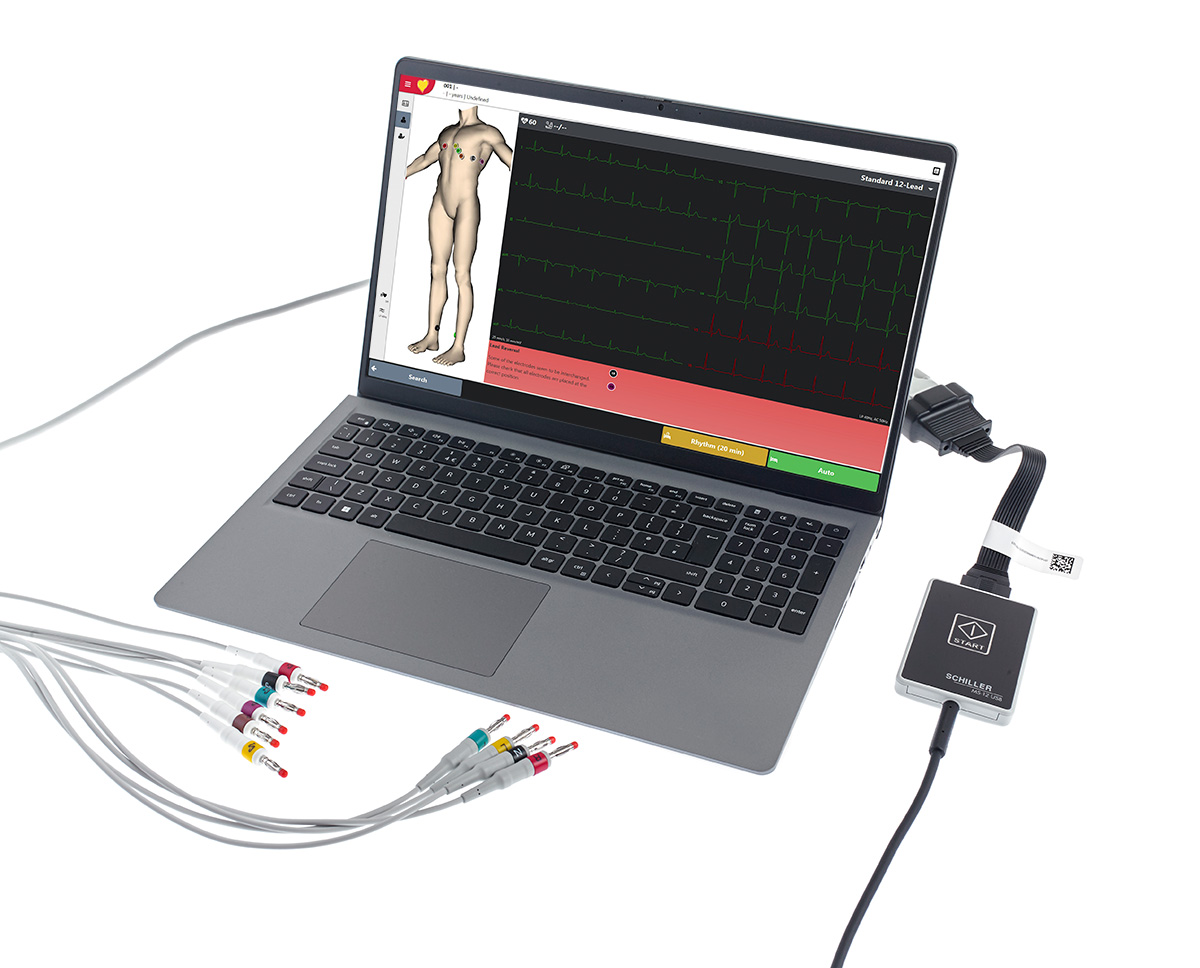

Schiller Cardiovit CS-104 compact, mobile and lightweight PC based 12 lead ECG system.
The CS-104 is ideal for the busy GP practice and includes a Lead Reversal Detection system which clearly indicates the misplacement of electrodes pre-aquisition. The hook up advisor feature helps to highlight loose or disconnected leads with a 'traffic light' signal quality indicator. Both of these features help to simplify and speed up the ECG acquisition process.

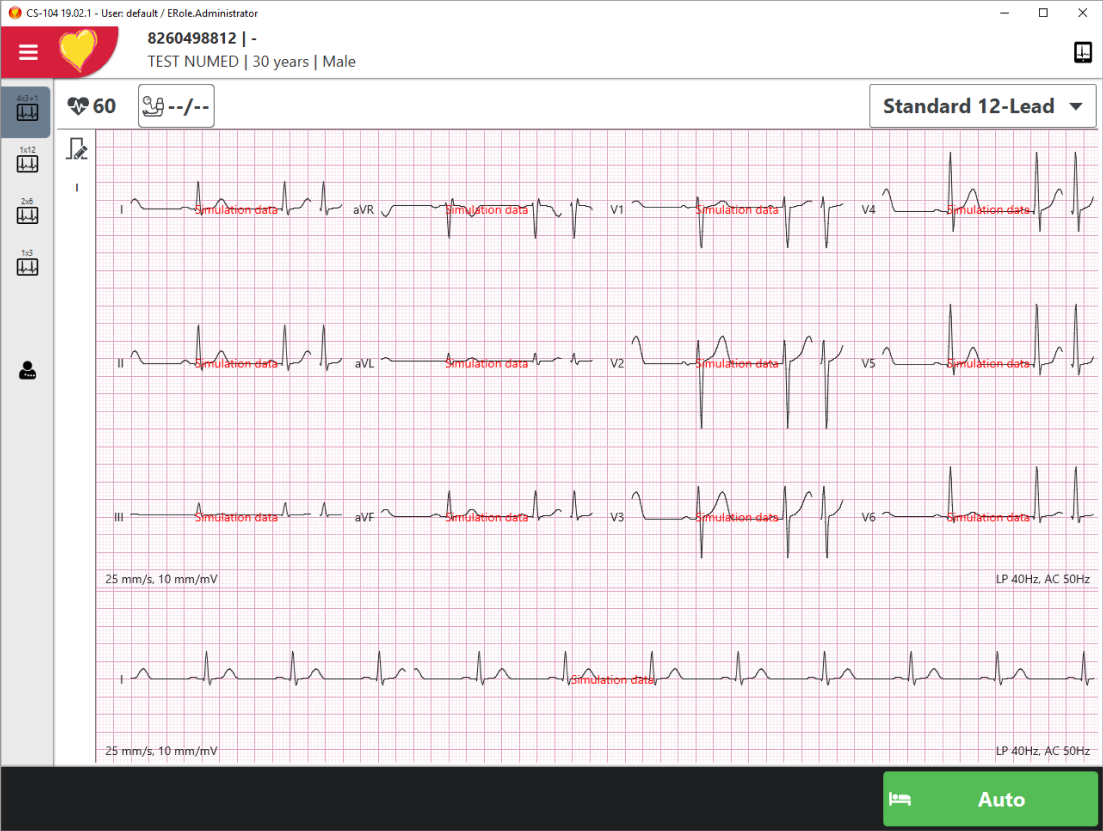

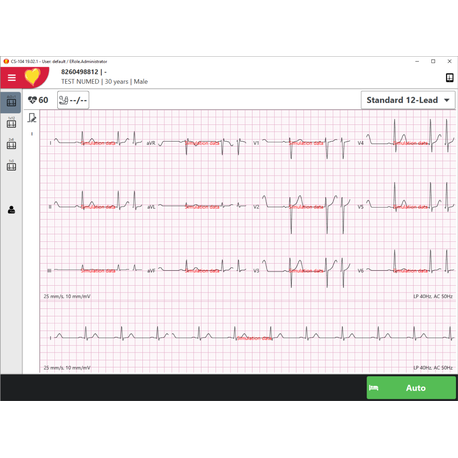

A Resting Rhythm feature allows you to record a rhythm strip for up to 20 minutes if required and the hub can be used to acquire an ECG from the monitoring screen, meaning the clinician can remain close to the patient while taking the ECG. The advanced ETM Algorithm is a high quality and accurate algorithm for ECG interpretation.
Using the included I3 software*, the Schiller CS-104 ECG machine is fully integrated with all the leading NHS clinical systems from EMIS, TPP and Vision. The software automatically files a high quality ECG report (as a PDF) and coded result to the patient's record on test completion.
The system is supplied with all the required software and accessories and includes a one year MediServe Support package to ensure that your service continues to run smoothly. It includes all the required software and accessories and a 3 year Numed warranty.
What’s inside the package?
- Schiller CS-104 ECG System

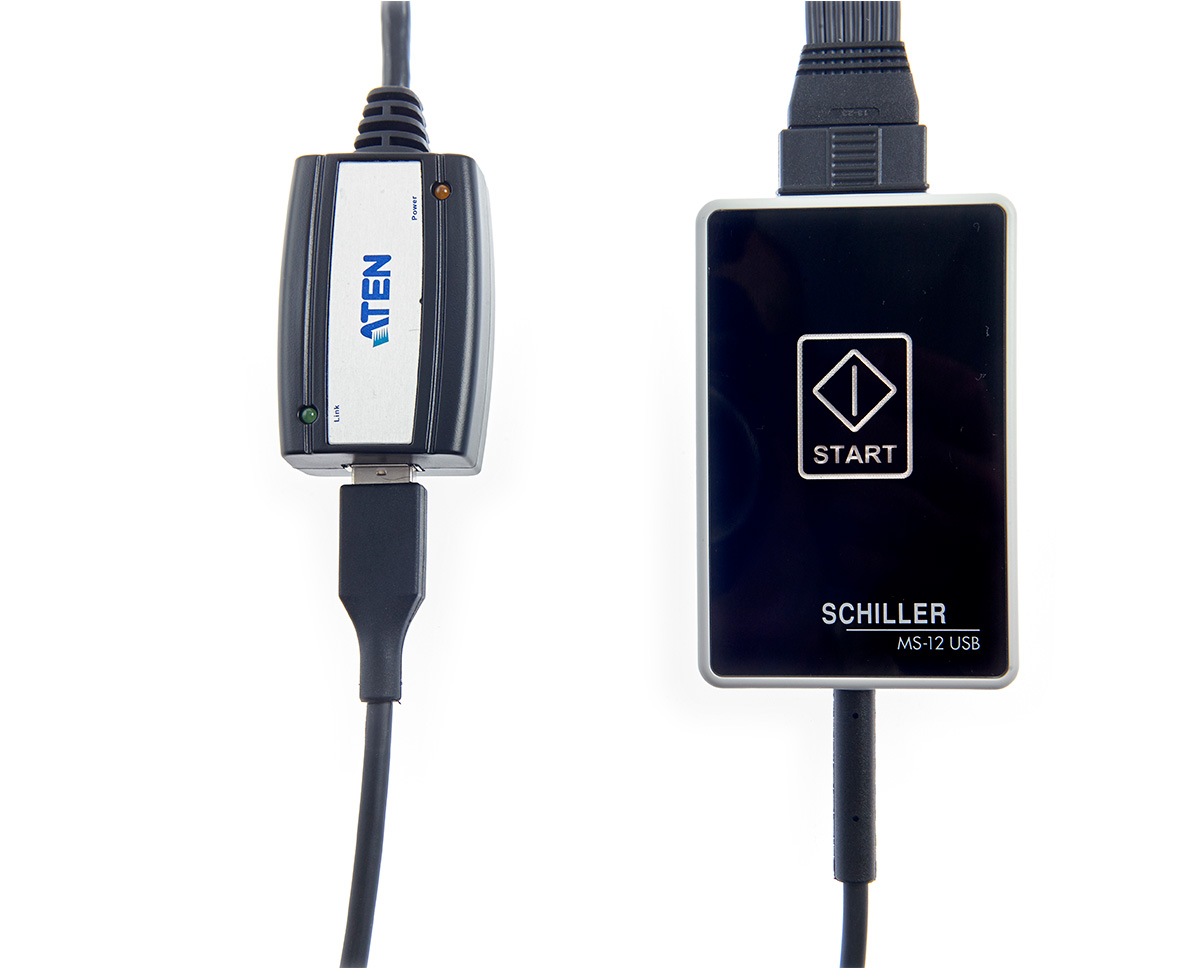

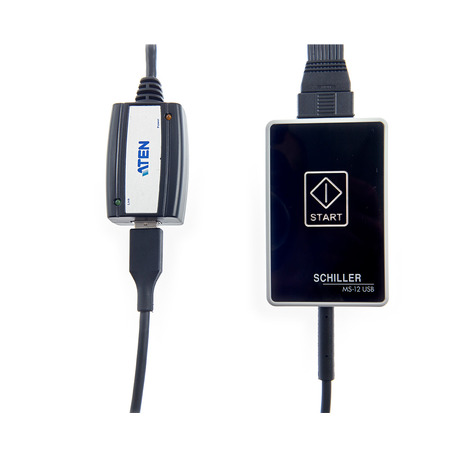

- 5 Metre USB Extension Cable
- 100 Ambu SUPAtab ECG electrodes
- 10 Ambu crocodile clips
- Protective carry case
Laptop/PC not included
*ongoing license cost applies
The manual attachment of diagnostic reports to a patient’s medical record is a time consuming process and, combined with the inputting of codes, can often mean you spend more time carrying out administration tasks than caring for your patients. Manual data entry can also compromise patient safety, through the attachment of test results to the incorrect patient medical record.
I3 integration provides a solution to these problems by acting as a link between your GP clinical system and a range of 12 lead ECG, ABPM and spirometry devices.
I3 will retrieve a patient’s details from the EMIS, TPP SystmOne or Vision clinical systems and automatically pass this information to the diagnostic device you want to use, ready to perform your test. Once all the tests have been completed, I3 will then file a PDF report of the test results and any associated coded results directly into the patient’s medical record automatically. This makes your diagnostic testing safer, faster and easier.
CARDIOVIT CS-104 Software Requirements
Dual-core, 1 GHz or faster, Intel Core 2 Duo Processor
2 GB (32-bit) or 4 GB (64-bit) RAM
Minimum 16 GB (32-bit) or 20 GB (64-bit) free hard drive space. 100 GB free space recommended (an average ECG recording uses 60MB, ≈ 1600 recordings (1 year)
Microsoft DirectX 9 graphics device with WDDM driver, minimum AMD Radeon HD 3200 or NVIDIA GeForce 9400
Min 1280 x 1024 screen resolution, recommended 1920 x 1200
Windows Operating System
Printout on normal paper with inkjet or laser printer
Standard 100 Mbit/s Ethernet or standard WLAN network

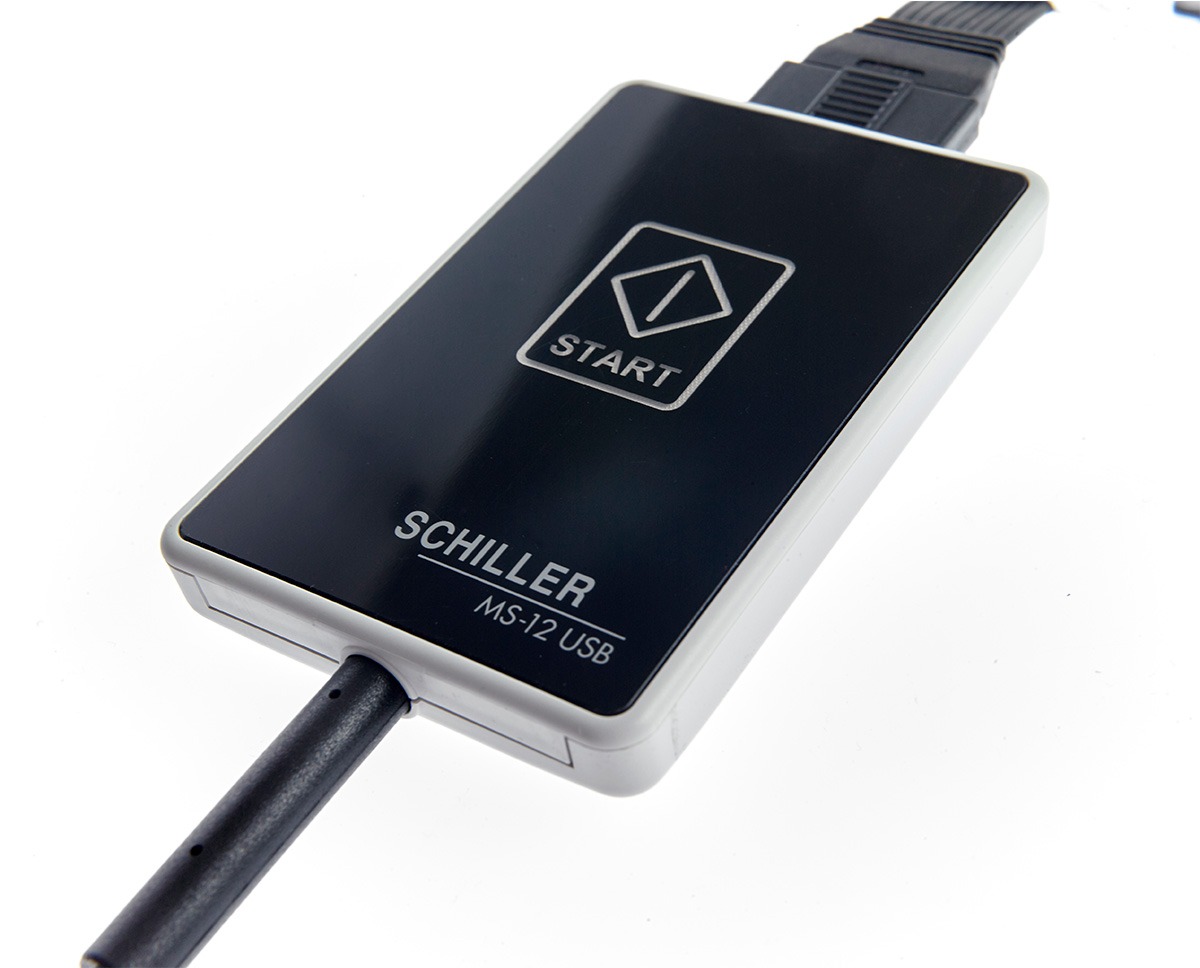

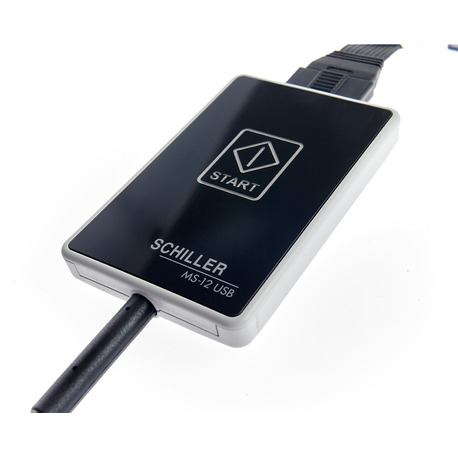

MS-12 USB Recorder Specifications
Height/Width//Depth: 95 x 62 x 14 mm
Weight: 140 gm including USB cable
USB cable for PC connection, unit power, and data transmission - 2.5 metre cable length
Illuminated light blue indicating PC connection (and data transmission). Blinking light blue indicating button is active.
Fully floating and isolated, defibrillation protected (only with original SCHILLER patient cable), type CF.
Complies with IEC standard 60601-2-25 and ANS/I/AAMI EC11
