QRS Universal Smart ECG PC Based Resting ECG System
Product Code: N101239
- 1 year integration with EMIS, TPP SystmOne and Vision included - Saves time and increases patient safety
- 1 year MediServe Support cover included - Includes unlimited technical support and repair and servicing with loan equipment
- 3 year manufacturer's warranty
- USB power supply - No batteries required

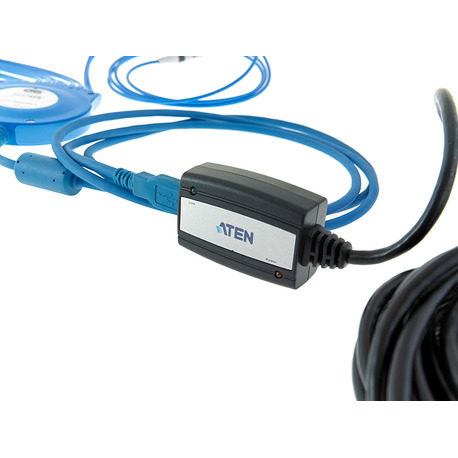

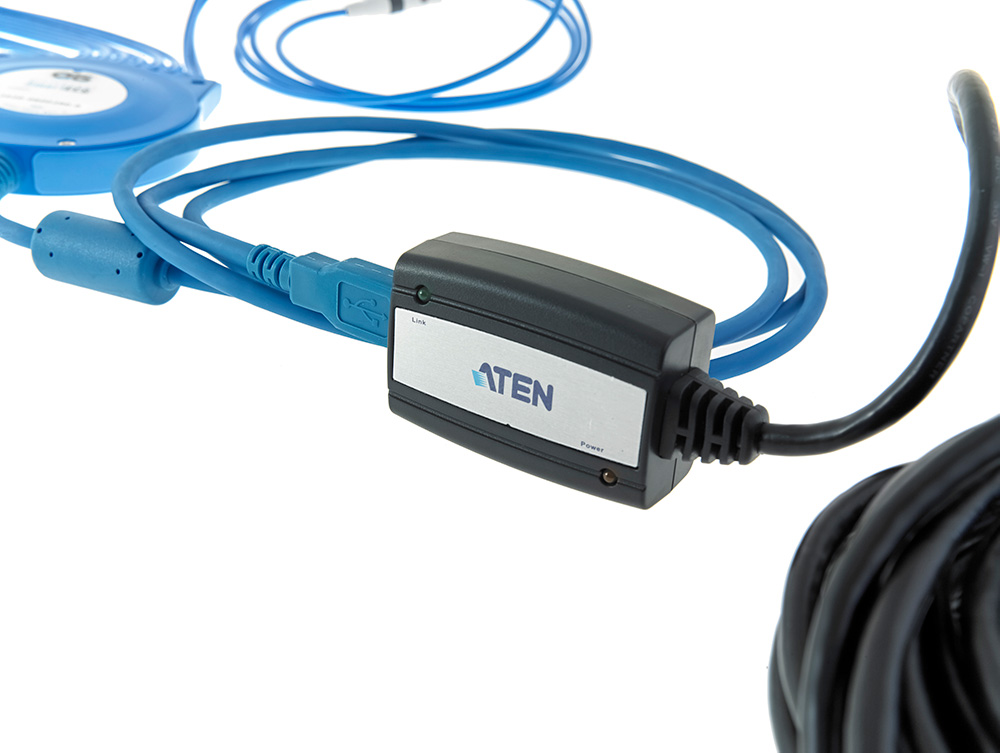

- 7 metre cable length - Suitable for large consulting rooms
Trade-in package available – contact us for more information
Also available to rent from just £53 per month - Find out more here
Our diagnostic solutions are designed to save you time and improve patient safety. This product is available with the following options:
I3 Integration
I3 integration will automatically retrieve a patient's details from EMIS, TPP SystmOne or Vision and file a PDF report and associated coded results upon test completion to their medical record.
Find out more about I3 integration See how it worksMediserve Support
This product is available with our unique MediServe support package, which includes unlimited technical support and a full aftercare service.
Find out more about Mediserve supportInstallation & Training
Our dedicated team can install and train you on this product at a time that is convenient for you.
Find out more about install & trainingOffering cutting-edge technology and unparalleled accuracy, the QRS Universal Smart ECG PC-Based Resting ECG System is a must-have. Designed to improve cardiac diagnostics, this system offers comprehensive insights into patients' cardiac health with ease and precision.

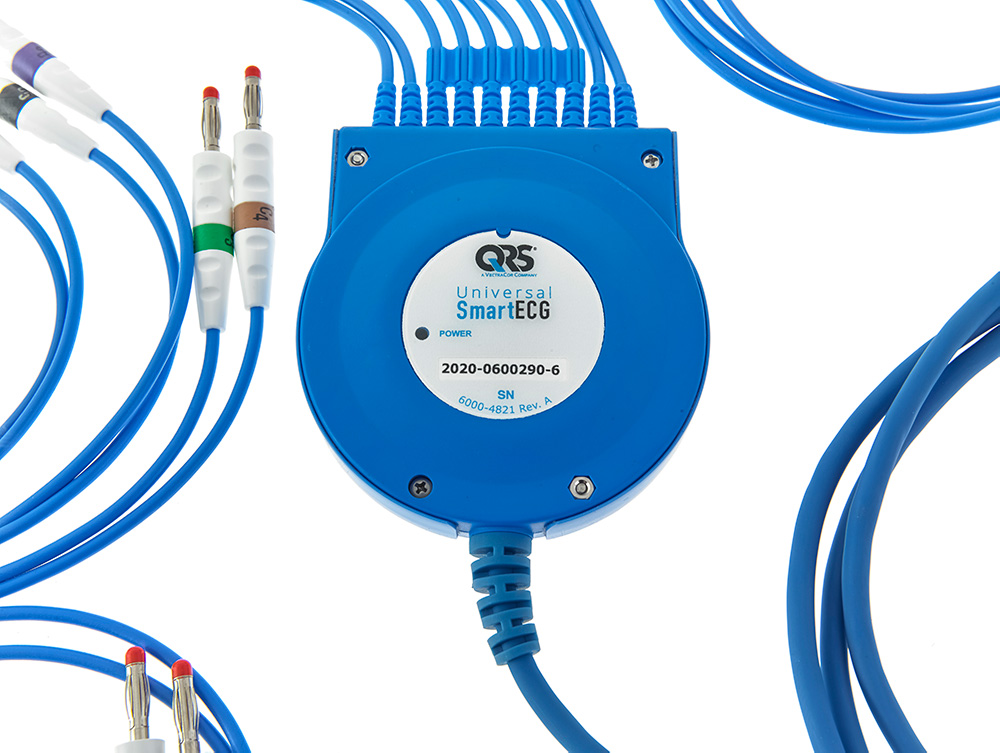

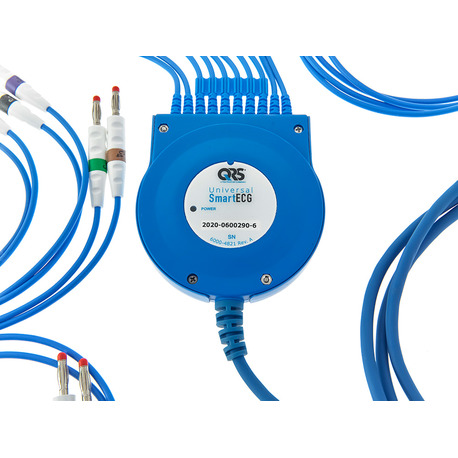

The Universal Smart ECG 12-Lead Interpretive ECG machine from QRS Diagnostics is an easy to use, portable and lightweight resting ECG device that plugs directly into any PC. The Universal is ideal for primary care ECG clinics or a GP Surgery on a limited budget.
Using the included Intelligent Integration Interface (I3) software*, the Universal Smart ECG is fully integrated with all the leading NHS clinical systems from EMIS, TPP and Vision. The software automatically files a high quality ECG report (as a PDF) and a coded result to the patient's record on test completion. Universal ECG is also compatible with the ECG On-Demand with i3 ECG interpretation service from Technomed.
It is supplied with all the required software and accessories, and includes a one year MediServe support package to ensure that your service continues to run smoothly. It includes all the required software and accessories and a 3 year manufactuer's warranty.
What’s inside the package?

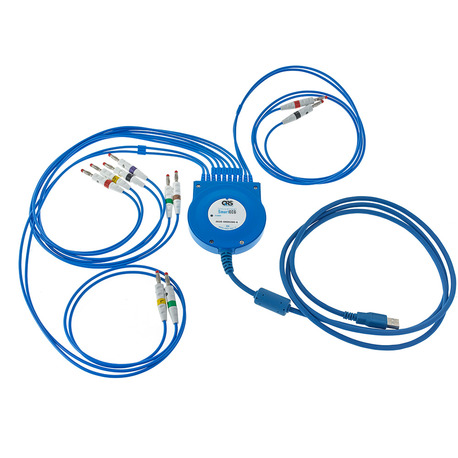

- Universal Smart ECG 12 Lead ECG System
- CardioView interpretive software
- 100 x Ambu SUPAtab ECG electrodes
- 10 x Crocodile clips
- Padded Weave Transit Case
*ongoing license cost applies
Key Features:
- Extended Warranty: With a 3-year warranty, the QRS Universal Smart ECG System provides long-term reliability and peace of mind, ensuring continuous support and satisfaction for healthcare professionals and patients alike.
- Compact and Portable Design: Measuring just 85 x 91 x 20 mm and weighing a maximum of 335 grams, this system boasts a sleek and lightweight design, making it ideal for both clinical and mobile use. Its compact size ensures convenience without compromising on performance.
- Seamless PC Connectivity: Compatible with Windows 10 (64 bit) operating systems, the QRS Universal Smart ECG System offers hassle-free integration with your PC. With minimal system requirements, including 100MB of hard disk space and a minimum resolution of 1024x768 graphics, setup is quick and effortless.
- Effortless Operation: Featuring a user-friendly interface and intuitive controls, this system ensures smooth and efficient operation for healthcare professionals of all levels. With just one free USB port required for connectivity, you can easily access and analyse ECG data with precision and ease.
- Advanced Cardiac Monitoring: Utilising cutting-edge technology, the QRS Universal Smart ECG System delivers accurate and reliable resting ECG readings, enabling early detection of cardiac abnormalities and facilitating timely intervention and treatment.
- Reduce appointment times
- Increase patient safety
- Eliminate the need for manual data entry
- The patient’s details are automatically passed to the ECG software, ready for the ECG test to be performed. No re-entry of patient data is required.
- I3 sends the results to the patient’s medical records automatically, including a copy of the report and a Read code, showing the ECG has been completed.
Unlock the full potential of cardiac diagnostics with the QRS Universal Smart ECG PC-Based Resting ECG System. With its advanced features, compact design, and strong connectivity, it's the ultimate solution for comprehensive cardiac monitoring. Upgrade your practice with the QRS Universal Smart ECG System today!
The manual attachment of diagnostic reports to a patient’s medical record is a time consuming process and, combined with the inputting of codes, can often mean you spend more time carrying out administration tasks than caring for your patients. Manual data entry can also compromise patient safety, through the attachment of test results to the incorrect patient medical record.
I3 integration provides a solution to these problems by acting as a link between your GP clinical system and a range of 12 lead ECG, ABPM and spirometry devices.
I3 will retrieve a patient’s details from the EMIS, TPP SystmOne or Vision clinical systems and automatically pass this information to the diagnostic device you want to use, ready to perform your test. Once all the tests have been completed, I3 will then file a PDF report of the test results and any associated coded results directly into the patient’s medical record automatically. This makes your diagnostic testing safer, faster and easier.
Safety Standards : Complies with AAMI EC11, IEC/ EN60601-1, IEC/EN 60601-1-2, IEC/EC 60601-225
Hub Weight : 335 grams maximum
Hub Dimensions: 85 x 91 x 20 mm
Patient Leads Length: Limb = 1 meter,Chest =0 .6 meter
Gain/Sensitivity: 5,10,20 mm/mV
Input Range: ±6mV
Defibrillator Protection: Patient leads are isolated from system and operator, with 4kV protection
Electrode Connections: 4mm banana plug with tab or snap connectors
Frequency Response : 0.05 to 175Hz ±3dB
Environmental Conditions: Operating Temp. 0-40°C, Storage Temp. -20-70°C, Humidity < 85% (non- condensing).
PC Requirements: Operating System: Windows 10 (64 bit), Hard Disk Space: 100MB, Graphics: Minimum 1024x768 resolution, USB: One free USB port is required
